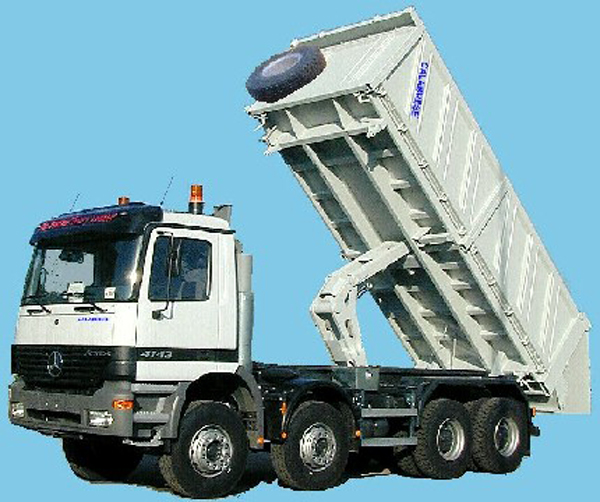

TS/40 - Three-way tipper

"YARD" type 20 cu.m. three-way stabilized tipper model TSI4O ideal for 8x4 Heavy-Duty chassis cabs.

BODY
"Yard" type body made of special high yield-point abrasion-proof steels. Sideboards stiffened by oblique uprights with mechanical opening.
Rear board with automatic-mechanical jib-type opening and anti-locking device.

SUBFRAME
Main beams made of special section quality steel, connected with pressed cross members.

STABILIZED HOISTING UNIT MODEL TSI40
Reliable hoisting unit according to "Calabrese" custom, basically consisting of two sectors and two arms firmly fastened, the first to the subframe and the second to the body. A single-stage oleodynamic cylinder is housed inside the unit.

BODY MATERIALS
Platform: T1-A or equivalent. Thickness 8 mm.
Boards: T1-A or equivalent. Thickness 6 mm.

HYDRAULIC SYSTEM MODEL TSI4O
Single-stage cylinder and chrome-plated rod.
Body lifting is performed by engaging the P.T.O. and pump unit.
Lowering operation with speed regulator is controlled by pneumatic switches located inside the cab.
Automatic cylinder end-of-stroke device for side and rear tipping.
Highly reliable pipes, valves and fittings.
Lifting capacity: 40 tons.
Hoisting time: 20 sec.

PAINTING
Sandblasting, anti-rust coating and painting with synthetic enamel with oven-drying. Standard colour: IC194 white.

STANDARD OUTFITS
Winch-type spare wheel holder mounted on the front board. Side clearance lights. Rear rubber pads. Reflecting rear panels. Rear steel/rubber mudguards. Arrangement for assembly of upper manually-operated sliding canvas. Toolbox.

OUTFITS ON REQUEST
Detachable extension for discharging into finisher. Manually-operated canvas or electrically-controlled "Cramaro" brand or similar.
