Differentiated dry-wet collection

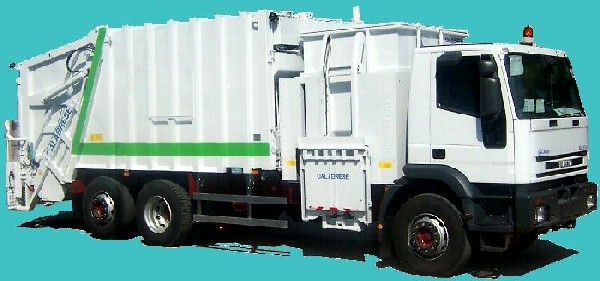

The "CALABRESE" equipment is specifically designed to simultaneously collect distinct dry-wet waste and to resolve packing and transport problems of solid urban waste, in compliance with legislations in force in Italy and in the EC (Directive n°89/392/EC, 91/368/EC, 93/44/EC, 93/68/EC and amendments) with particular reference to Safety Rules EN 1501-1- 2000.

The equipment is made up of two sections that allow different types of collection:
1) Dry section and/or solid urban waste collection;
2) Wet section / organic

DRY SECTION and/or Solid Urban Waste collection:
Rear Hydraulic Compactor consisting of:
Body: made of high yield-point steel, adequately stiffened, with continuous welding to prevent corrosion and sealing problems.

Packing system: made up of a waste packing shovel and slide. The hovel is operated by two high performance double-acting oleodynamic cylinders; it is hinged to the slide which is activated by other two double-acting oleodynamic cylinders. The automatically opening and closing packing unit, provided with sliding guides, is hinged at the top of the body and is driven by two double-acting cylinders. In the event of oil pipe failure on the packing system lifting cylinders, a cut-out device provides for lowering shut-down.

Packing unit control: electrical with button panel allowing the following working cycles:

Single Automatic Discontinuous Cycle / Automatic Continuous Cycle / Manual Cycle with button for Single Independent Stages / Reversal Cycle.

Ejection/Back-pressure System: all waste contained and packed inside the body is ejected from the opened tailgate by means of a push-out plate which slides on special anti-friction guides. The push-out plate is moved by a double-acting chrome-plated cylinder that generates back-pressure to the combined plate in order to increase waste packing ratio. The plant is provided with a special automatic backing system of the push-out plate by making use of the existing pressure in the packing unit hydraulic system.

Regulation size rear boards are provided complete with: warning lamps, inside the cab, indicate presence of operator and shut-down the packing cycle; 30 km/h speed limit device for presence of operators on the footboards, including reverse; rear camera with monitor inside the cab.
Container lifting device for 1100 - 1700 lt. Containers, with DIN/UNI male coupling and comb-type coupling for 80 to 360 lt. bins according to UNI EN 840:1997.

WET SECTION:
"Tub" type water-proof container, either in 3 or 5 cu.m. version, suitable for the collection and transport of organic non-compact waste, consisting of: a tub made of high yield-point abrasion-proof steel, adequately stiffened. All automized welding is continuous to prevent corrosion and sealing problems. Discharge is performed by side tipping, by means of a double-acting telescopic oleodynamic cylinder. The tub is equipped with upper doors operated by hydraulic cylinders having controls both manual and automatic non the left-hand side of the compactor.

Container Lifting Device: the loading system is located on the left-hand side by means of the container lifting device with comb-type coupling for simultaneous unloading of two from 240 to 360 lt. bins according to UNI EN 840:1997 standards and of one 660-770 lt. container.
Lifting Device Controls: electrical with button panel placed near the operating area with "hold-to-run" type controls.
Tub tipping: electrical with button panel placed inside the cab.
