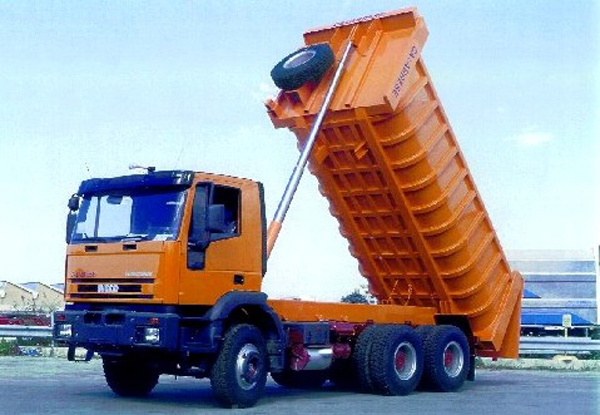

PA/33 - Tipper body

This rear tipping body is designed with a low centre of gravity in order to improve the vehicle's stability and, thanks to the roundeed body corners, an easy unloading of wet materials.

Body: made of high quality steel with a continuous structure between the side boards and the platform, it is provided with an automatic tailgate opening system. The platform is made of Fe 510 high tensile steel with tickness of 8 mm. (6 mm. optional) while the sides are also in Fe 510 steel with tickness of 6 mm. (4 mm. optional). Different quality steels can be provided as optional.
The net body capacities, based on the model of chassis cabs, are of 10,12,14 and 16 m3.

Substructure: consisting of two main beams in structural steel which are connected to each other by means of transversal and rear diagonal cross members. The structure is provided with a single transversal strong pivoting shaft at rear on wich the body is hinged.

PA/33 hoisting device: front mounted low pressure (max 150 bar) multistage telescopic cylinder is operated by pneumatic valves from the cabin. Hoses, valves and fittings are of the best quality.

Standard outfits: cab-guard, front mounted winch type spare wheel holder, manually operated body safety prop stand.
